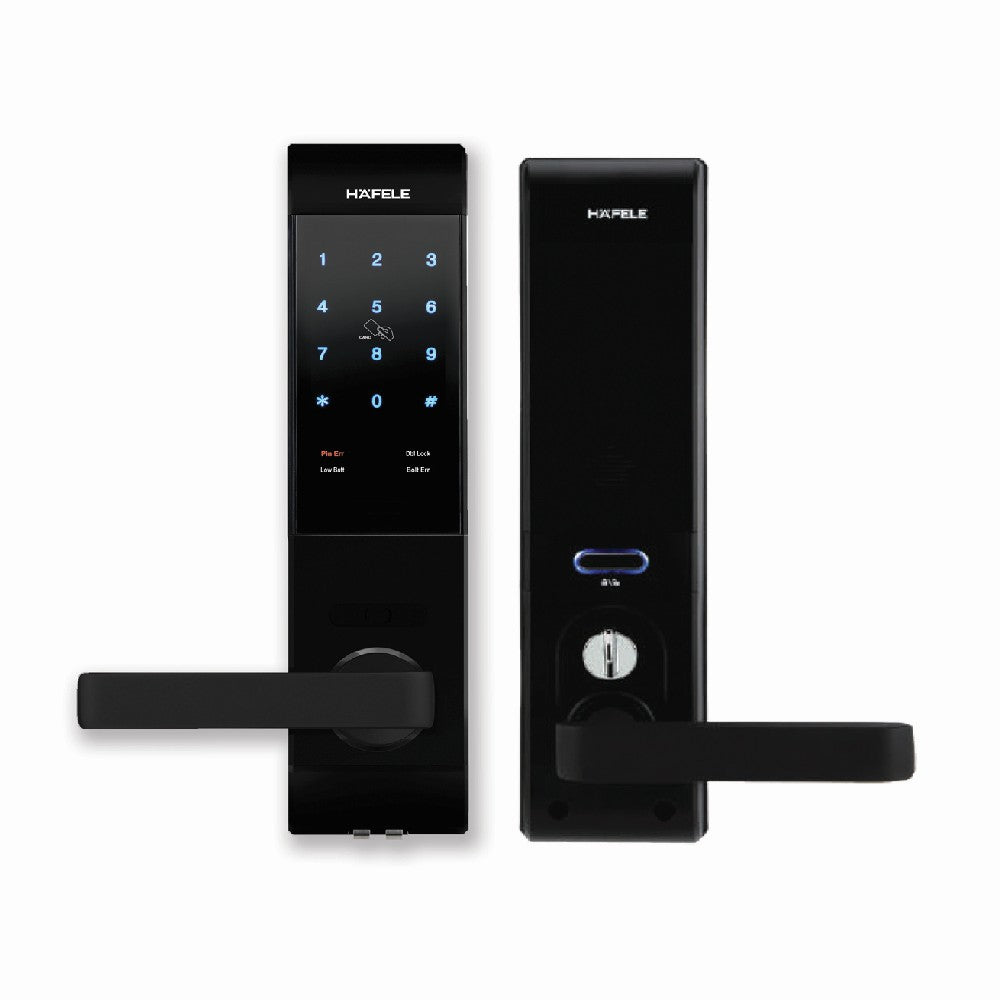

Häfele App Lock DL7900 [App-Controlled]

Cat. No: 912.05.641


Warranty: 2 years
Mode of entry: [App-Controlled] Bluetooth Key, Smart Card, Password and Mechanical Key
Door thickness: 38 - 90mm

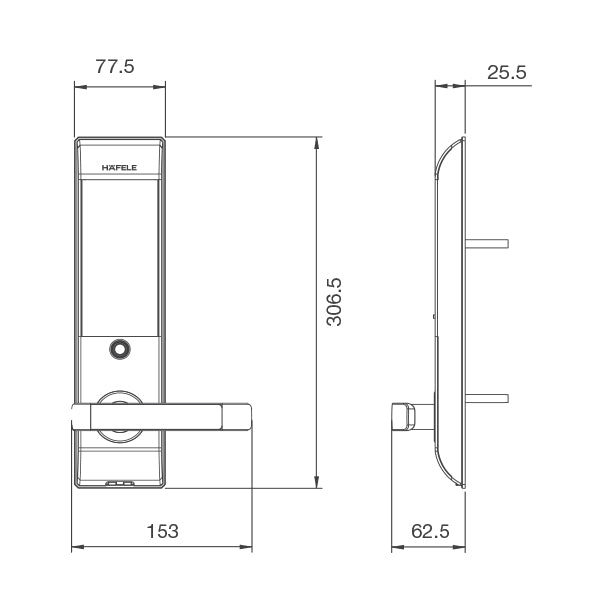

Size / Dimension: Front 73.5 (W) x 302.5 (H) x 25.5 (D) mm
Back 78.5 (W) x 310.5 (H) x 35 (D) mm
Material: AL, ZN, ABS, PC
Surface treatment: Triple metallic coating
Unlimited BLE key
Register up to 200 smart card
1 master password and unlimited user password
Color: Black
Manage by Hafele Access App
Password validity setting
View access logs
Fire alarm sensor
Electric shock resistance
Random Security Coding Function
Double Locking Function
Auto Locking Function
Auto and manual locking modes inter-switchable
Tamper alarm
Sound alert when lock is not completely closed
Security lockout mode
Mischief and Hacking Prevention System
Supplied with: 1 x Front & rear module
1 x Mortise lock & striking plate
1 x Set of fixing material
1 x User manual
1 x Installation template
8 x AA alkaline battery
2 x Smart card
2 x Smart key tag
3 x Mechanical key

User Guide
