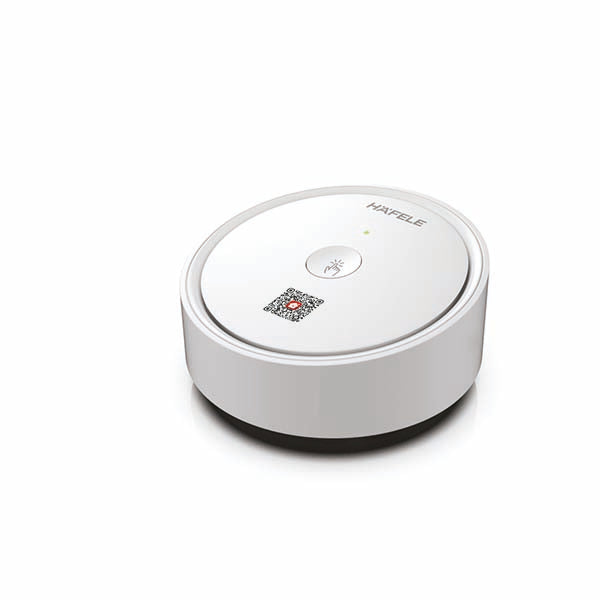

Wireless Smart Gateway HSL-GW02

Cat. No: 985.03.024


Gateway is the control center of the ZigBee and Bluetooth device. Users can design and implement intelligent application scenarios by adding ZigBee devices through Häfele Smart Living APP.

Wireless communication - 2.4G Wifi (IEEE802.11b/g /n)
- Zigbee 3.0 | Bluetooth 5.0
Working temperature -10O°C - 45°OC
Working humidity 5% - 90% RH (no condensation)
Working voltage DC 5V
Power source Adapter DC 5V/1A
Materials ABS
Color White
Dimension 70x30 mm
Working distance In wifi coverage area.
- Max 100m to Zigbee end devices*.
* Zigbee device with repeater function is needed.
Maximun end device can connect 128pcs
Warranty policy 1 year replacement warranty.
